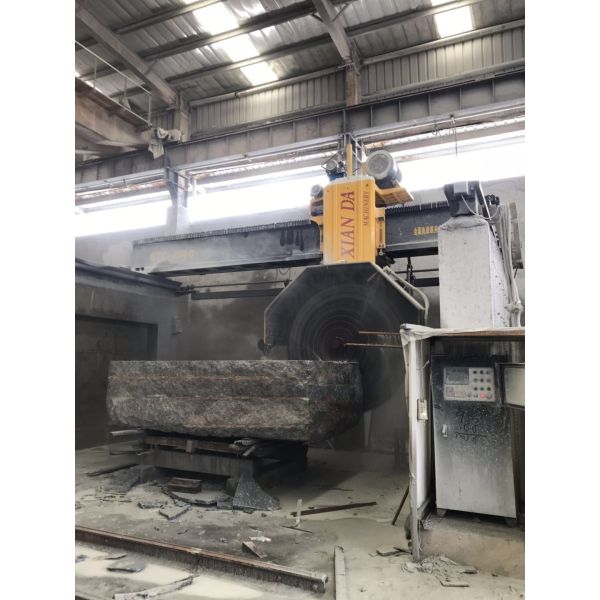

Block Cutting Machine For Granite And Marble

Name: Block Cutting Machine For Granite And Marble
Brand: Xianda Machinery
Price: 1 USD

Quality Block Cutting Machine For Granite And Marble for sale

Model Number : BTC-2200/2500/2800

Delivery Time : 30 days

Product name : Block Cutting Machine

Max blade diameter : 2200/2500/2800mm

Lifting stroke : 1320mm

Water consumption : 15m³/h

Moving front&back travel : 2200mm

Application : Granite Marble slabs

Gross weight : 14000kg

Brand Name : Xianda Machinery

Certification : API, CCC, UL, SONCAP, GOST, ISO, CE, SGS;IAF

Place of Origin : Jinjiang, Fujian, China

MOQ : 1

Price : To Be Negotiable

Payment Terms : L/C, T/T, D/A, D/P, ,

Supply Ability : 1000 Sets/Year

Packaging Details : Plastic Package, Suitable for Sea Transportation.

Contact Now

Block Cutting Machine For Granite And Marble

Product Specifications

Attribute	Value
Product name	Block Cutting Machine
Max blade diameter	2200/2500/2800mm
Lifting stroke	1320mm
Water consumption	15m³/h
Moving front&back travel	2200mm
Application	Granite Marble slabs
Gross weight	14000kg

Product Description

This advanced block cutting machine features inverter-controlled left-right feeding with adjustable speed settings for different stone types. The hydraulic lifting system and high-precision screw nut driving mechanism ensure accurate forward-backward slicing with automatic operation. Constructed with imported materials for durability, this machine can be ground-mounted to save workspace and reduce maintenance costs.

Key Features:

High cutting efficiency and slicing precision
Excellent plate flatness after cutting
Exceptional operational stability
User-friendly controls
Optimized for high-value granite and marble blocks

Technical Parameters

Parameter	Max blade diameter	Left and right travel	Moving front&back travel	Lifting stroke	Main motor	Gross power	Outline dimension	Water consumption	Gross weight
BTC-2200	2200mm	3800mm	2200mm	1320mm	45/55kw	57/67min/㎡	800048003700mm	15m³/h	14000kg
BTC-2500	2500mm	3500mm	2200mm	1320mm	45/55kw	57/67min/㎡	800048003700mm	15m³/h	14500kg
BTC-2800	2800mm	3200mm	2200mm	1320mm	55/65kw	67/77min/㎡	800048003700mm	15m³/h	15000kg

Product Images

Block Cutting Machine For Granite And Marble
