Machine description

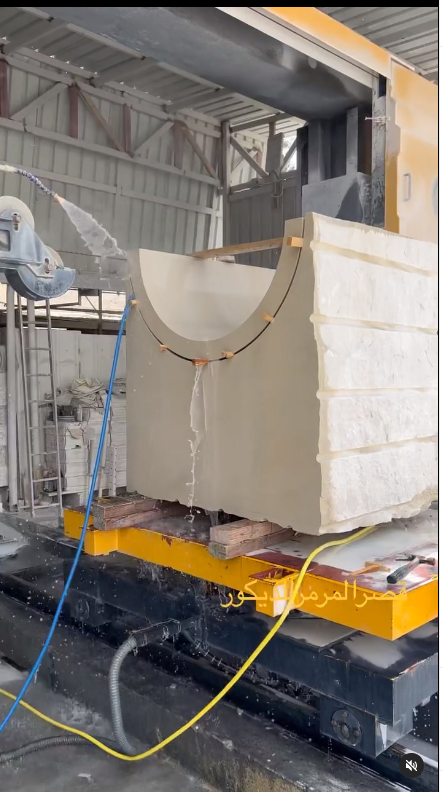

Xianda Discovery 4 CNC Diamond Wire Saw Machine
Engineered for precision stone profiling and block squaring, the Discovery 4 features an upgraded 16-surface slideway structure with 28 rolling wheels for exceptional rigidity and smooth operation. Powered by a variable-frequency motor (wire speeds up to 40 m/s), it easily processes granite, marble, limestone, and quartzite into circular slabs, Roman columns, tombstones, and complex 2D/3D shapes.
Key Features:
- Heavy-Duty Stability: 16-surface guide system prevents vibration for clean, accurate cuts.
- Smart 4-Axis Linkage: Precise automated processing for intricate stone shapes and characters.
- Durable Design: Waterproof cantilever gearbox and heavy-duty steel tracks extend operational lifespan.
- High Efficiency: Variable wire speed control optimizes performance and reduces wire wear.
Machine parameter
| Parameter |
Unit |
Discovery 4-2000 |
Discovery 4-2500 |
Discovery 4-3000 |
| Max Processing Size |
mm |
2000*3000*1500 |
2500*3000*1500 |
3000*3000*1500 |
| Wheel Diameter |
mm |
1600 |
1600 |
1600 |
| Trolley Size |
mm |
1500*2500 |
1500*2500 |
1500*2500 |
| Table Bearing Weight |
ton |
20 |
20 |
20 |
| Main Motor |
kw |
15 |
15 |
15 |
| Wire Speed |
m/s |
20~40 |
20~40 |
20~40 |
| Outline Dimension |
mm |
6800*6300*4000 |
7800*6300*4000 |
8800*6300*4000 |
| Gross Weight |
kg |
≈5500 |
≈5750 |
≈6000 |
| Water Consumption |
m³/h |
≈3 |
≈3 |
≈3 |
FAQ (Frequently Asked Questions)
Q1: What materials can the Xianda Discovery 4 cut?
A: The Discovery 4 is designed to handle virtually all natural stones, including granite, marble, quartzite, limestone, basalt, sandstone, and slate.
Q2: What kind of processing work can this machine handle?
A: With its 4-axis CNC linkage system, it easily processes circular slabs, solid/Roman columns, tombstones, curved profiling, and complex 2D/3D shapes like numbers, letters, and Chinese characters. It can also be used for standard block squaring and trimming.
Q3: How does the 16-surface slideway structure benefit my production?
A: Standard machines often vibrate during heavy cutting, causing uneven surface finishes and premature wire wear. The upgraded 16-surface guide structure with 28 rolling wheels provides extreme structural rigidity, eliminating chatter for smoother cuts and longer tool life.
