4 Axis CNC Single Diamond Wire Saw for Accurate Profiling Cutting Ability

Place of Origin : Jinjiang, Fujian, China

Cutting Precision : High

Transport Package : Load In A 20 Feet Container

Source Voltage : 220V

Wire Diameter : 0.6-1.8mm

Power : 5.5-37kw

Hs Code : 84641090

Gross Weight : 10700kg

Cutting Ability : High Speed

Max Processing Size : 3000*2500*1500mm

Automation : Automatic

Wire Length : 10m

Water Consumption : 6m3/H

Control Type : CNC

Cutting Length : 20-60m

Diameter : 8.5mm to 11.5mm

Spindle : 15KW

Trolley Size : 1400*2500mm

Adjustment Distance : 450mm

Gross Motor : 11kw

Control System : PLC SYSTEM

Rated Power : 2.2kw

Brand Name : Xianda Machinery

Model Number : DISCOVERY 4-2000/2500/3000

Place Of Origin : Jinjiang

Certification : API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF

MOQ : 1

Price : To Be Negotiable

Packaging Details : Plastic Package, Suitable For Sea Transportation

Delivery Time : 1 Month

Payment Terms : L/C， T/T， D/P， ，Paypal ，， Others

Supply Ability : 1000 Sets/Year

Contact Now

4 Axis CNC Single Diamond Wire Saw for Accurate Profiling Cutting Ability
Product Specifications
Attribute Value
Cutting Precision High
Transport Package Load In A 20 Feet Container
Source Voltage 220V
Wire Diameter 0.6-1.8mm
Power 5.5-37kw
Hs Code 84641090
Gross Weight 10700kg
Cutting Ability High Speed
Max Processing Size 3000*2500*1500mm
Automation Automatic
Wire Length 10m
Water Consumption 6m3/H
Control Type CNC
Cutting Length 20-60m
Diameter 8.5mm to 11.5mm
Spindle 15KW
Trolley Size 1400*2500mm
Adjustment Distance 450mm
Gross Motor 11kw
Control System PLC SYSTEM
Rated Power 2.2kw
Product Overview

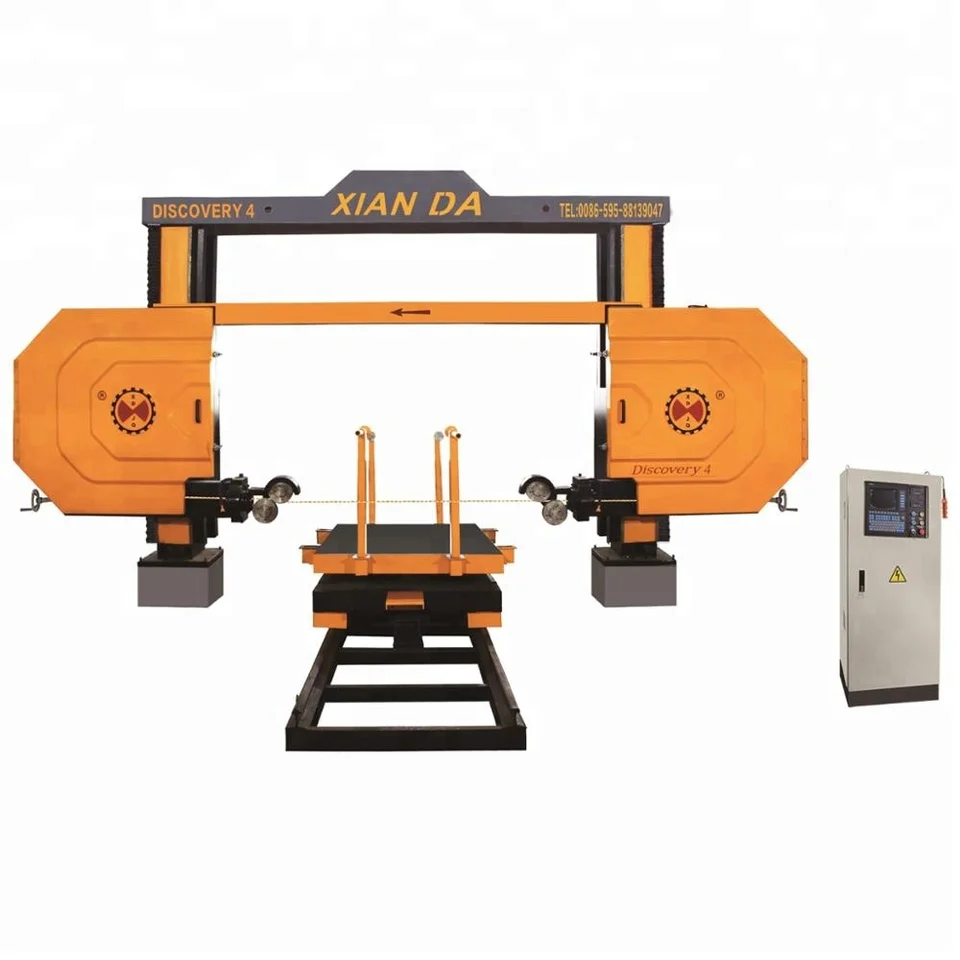

The Xianda 4 Axis CNC Single Diamond Wire Saw represents our ultimate version in CNC diamond wire saw machines. Featuring advanced engineering with a 16-surface slideway and 28-piece rolling wheel structure, this machine delivers exceptional precision and durability.
Technical Specifications
Parameter Max processing size Wheel diameter Trolley size Table bearing weight Wire speed Main motor Outline dimension Gross weight Water consumption Max processing size(with rotary worktable) Rotary trolley size(with rotary worktable) Outline dimension(with rotary worktable)
Discovery 4-2000 2000*3000*1500mm 1600mm 1400*2500mm 20T 0-40m/s 11kw 6800*6300*3950mm 6000kg 4m³/h No option No option No option
Discovery 4-2500 2500*3000*1500mm 1600mm 1400*2500mm 20T 0-40m/s 11kw 7800*6300*3950mm 6250kg 4m³/h 2500*3000*1500mm 1400*2000mm 7800*6800*4250mm
Discovery 4-3000 3000*3000*1500mm 1600mm 1400*2500mm 20T 0-40m/s 11kw 8800*6300*3950mm 6500kg 4m³/h 3000*3000*1500mm 1600*2000mm 8800*6800*4250mm
4 Axis CNC Single Diamond Wire Saw for Accurate Profiling Cutting Ability 4 Axis CNC Single Diamond Wire Saw for Accurate Profiling Cutting Ability 4 Axis CNC Single Diamond Wire Saw for Accurate Profiling Cutting Ability
Key Features
  • Equipped with advanced CNC system for intuitive touch screen operation
  • Aluminum wheels with stable tension system for enhanced cutting accuracy

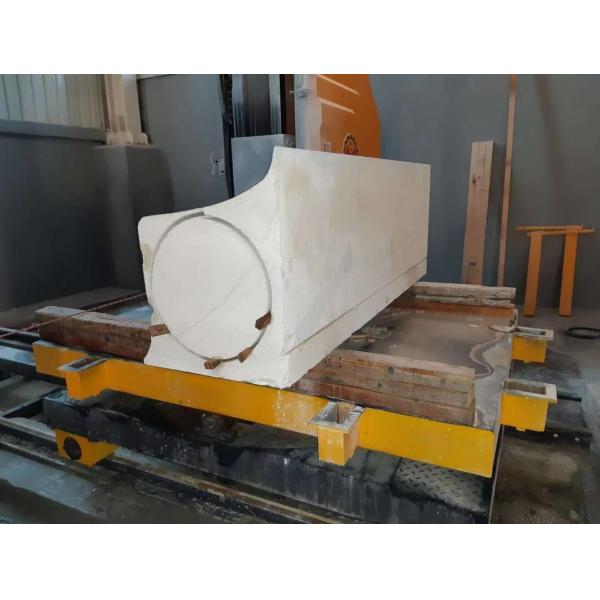

  • Capable of processing diverse, complex 2D/3D surfaces with precision
  • Adjustable cutting speed to accommodate different material requirements
  • High efficiency processing with exact sizing and smooth, flat margins
Support and Services
Our Diamond Wire Saw Machine comes with comprehensive technical support and services to ensure optimal operation. Our expert team provides assistance with machine functionality, troubleshooting, and performance optimization. We also offer training services to help users maximize the machine's capabilities for efficient and precise cutting results.
Packaging and Shipping
Package Size: 8800mm × 6300mm × 3950mm
Package Gross Weight: 6500kg
