Xianda Bridge Saw Cutting Machine For Profiling Automatic Table Movement

Water Consumption : 3m3/H

Blade Diameter : 350-450mm

Safety System : Available

Main power : 15kw

Gross Weight : 5100kg

Power Supply : AC

Warranty : 1 Year

Table Movement : Automatic

Brand Name : Xianda Machinery

Model Number : Expand 450/Expand 450FA

Place of Origin : Jinjiang, Fujian, China

Certification : API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF

MOQ : 1

Price : To Be Negotiable

Packaging Details : Plastic Package, Suitable for Sea Transportation

Delivery Time : 1 month

Payment Terms : L/C， T/T， D/P， ，Paypal ，， Others

Supply Ability : 1000 Sets/Year

Contact Now

Xianda Bridge Saw Cutting Machine For Profiling Automatic Table Movement
Product Overview

This industrial-grade bridge saw cutting machine features automatic table movement and comes with a 1-year warranty for manufacturing defects. Designed for precision profiling work, it delivers powerful performance with a 15kW motor and advanced cutting technology for demanding granite processing applications.

Key Specifications
Attribute Value
Water Consumption 3m³/H
Blade Diameter 350-450mm
Safety System Available
Main Power 15kw
Gross Weight 5100kg
Power Supply AC
Warranty 1 Year
Table Movement Automatic
Xianda Bridge Saw Cutting Machine For Profiling Automatic Table Movement Xianda Bridge Saw Cutting Machine For Profiling Automatic Table Movement Xianda Bridge Saw Cutting Machine For Profiling Automatic Table Movement Xianda Bridge Saw Cutting Machine For Profiling Automatic Table Movement Xianda Bridge Saw Cutting Machine For Profiling Automatic Table Movement
Technical Parameters
Parameter Unit Expand 450 Expand 450FA
Control system type / 4 Axis System Normal 5 Axis System
Blade diameter mm 350-450 350-450
Worktable size mm 3200*2000 3200*2000
Max processing size mm 3200*2000*100 3200*2000*100
Worktable tilting degree ° 0-85° 0-85°
Cutting head rotation degree ° 0-360° 0-360°
Cutting head rotation control mode / Servo motor control Servo motor control
Cutting head chamfer rotating degree ° 0-45° (Hydraulic Control) 0-90° (Servo Control)
Main motor power kw 15 18.5 (Permanent magnet motor)
Outline dimension mm 5000*3100*2700 5000*3100*2700
Water consumption m³/h 3 3
Applications

The Xianda Bridge Cutting Machine is engineered for precision granite processing with CNC capabilities for complex designs. Its versatile design makes it suitable for:

  • Granite processing factories and stone workshops
  • Construction sites requiring precise stone cutting
  • Art studios creating stone sculptures and decorative pieces
  • Processing various materials including marble, limestone, and sandstone
Support and Services
  • Professional installation and setup guidance
  • Comprehensive operator training program
  • Scheduled maintenance and repair services
  • 24/7 technical support hotline
  • Machine upgrade and customization options
Packaging and Shipping

Package Includes:

  • Bridge Saw Cutting Machine
  • Complete user manual

Shipping Information:

  • Estimated delivery: 30 business days
  • Tracking number provided
  • Shipping insurance included

Product Tags:

Bridge Saw Cutting Machine



Xianda Bridge Saw Cutting Machine



Profiling Bridge Saw Cutting Machine


Quality Xianda Bridge Saw Cutting Machine For Profiling Automatic Table Movement for sale

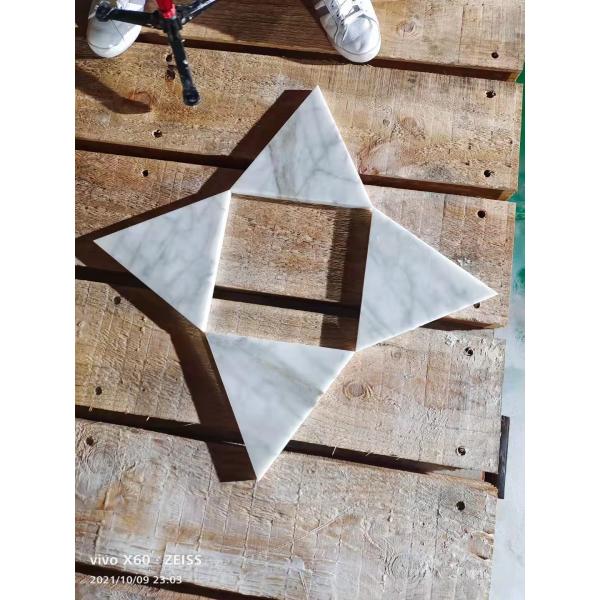

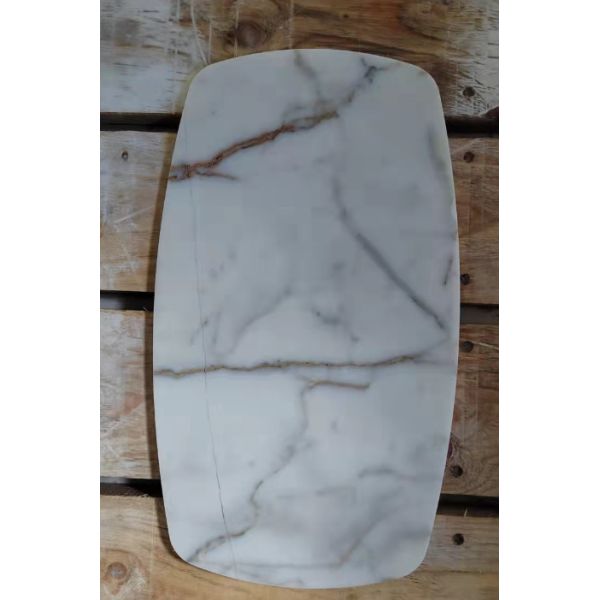

Xianda Bridge Saw Cutting Machine For Profiling Automatic Table Movement Images
